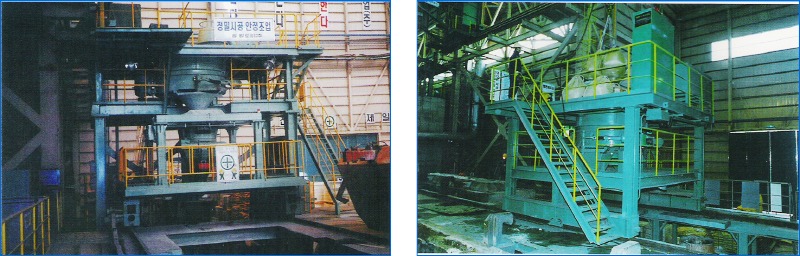

The Monolithic Casting M/C (Tundish)

1) Vortex mixer(with operation panel)

- Capacity

: 1,000Kg/batch

- Drive Motor

: 37Kw

- The exhaust device

: Lower part Swing gate(Operator : Power cylinder)

2) Water control unit

- Tank capacity

: 1.5M3

- Pump flow rate

: Max 150 ℓ /min

3) Hopper car

- Travelling speed

: Max 15 M/min

- Travelling motor

: 1.5Kw –motor, Inverter control

- Position setting

: Proximity sensor

- Swing gate speed

: Max. 10 RPM

- Swing gate angle

: Max. 170°

4) Monolithic mold

- Type

: Weld construction

- Vibrator

: 0.4Kw

- Jack clamp of the rising prevention

: 10 ton x 4Sets

- Take out device

: Hyd’ cylinder with Hyd’ unit

5) Deck & hoist unit

- Deck

: Working deck

- Hoist

: Crab type_3ton for refractory transportation

6) Electric control unit

- Type

: On Hopper car

- Control method

: Inverter control

- Sensor

: Limit s/w, Proximity sensor
